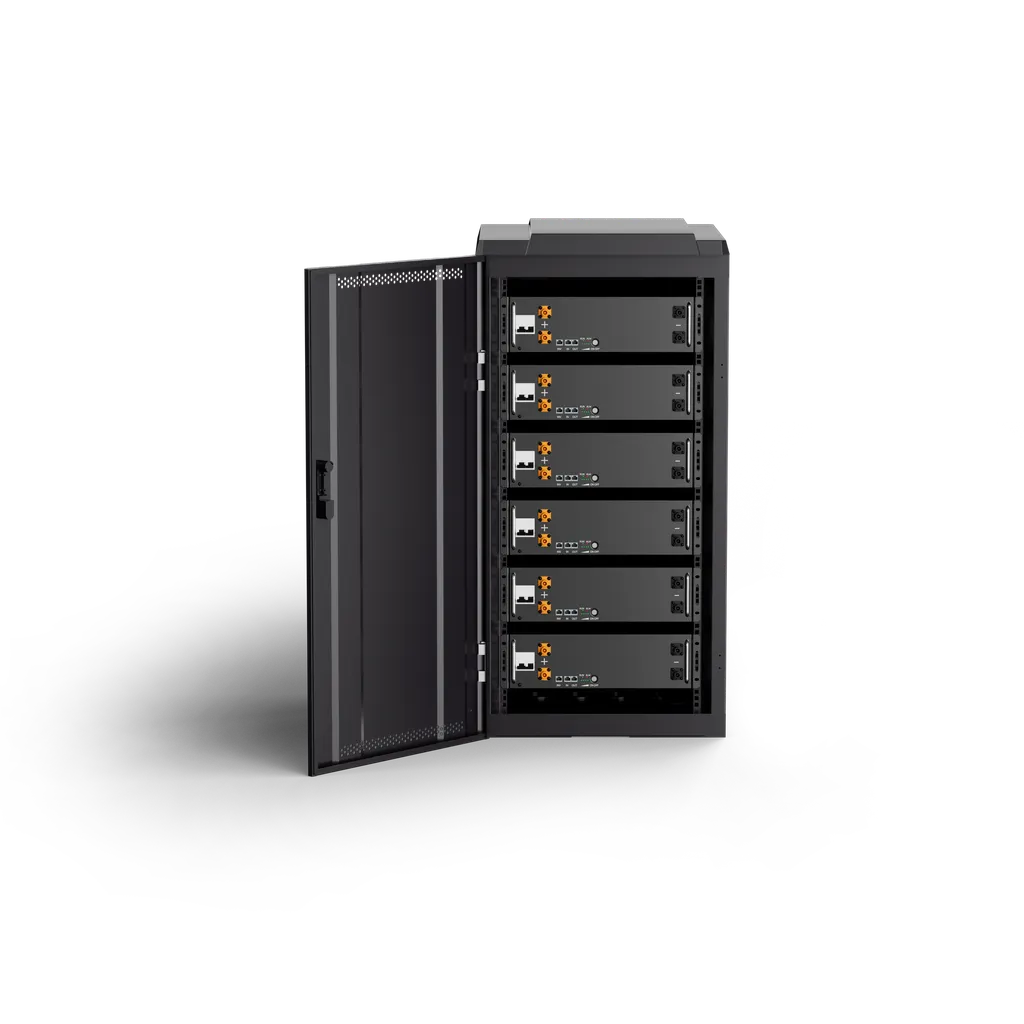

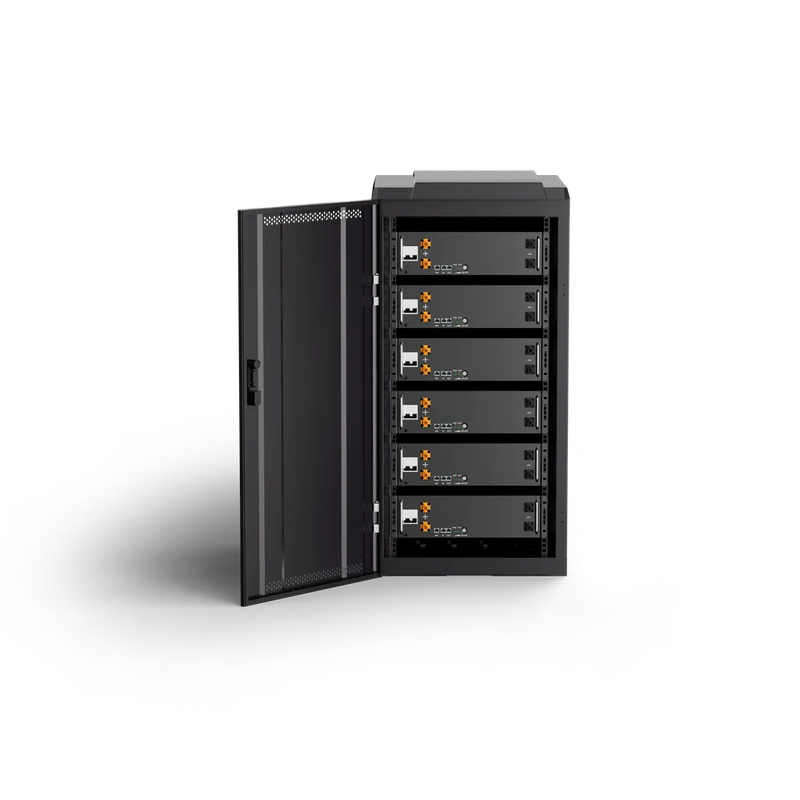

ZYC SIMPO Cabinet x6

$1,300.00 Ex. GST
$1,300.00 Ex. GST
Ex. GST

The ZYC SIMPO Cabinet series delivers a pre-wired, plug-and-play solution for housing multiples of SIMPO5000 battery modules (6-unit / 30 kWh or 10-unit / 50 kWh configurations), complete with factory-installed busbars and cables for fast, safe installation.

Choose the IP55-rated outdoor version for robust protection against dust, water jets and corrosion, making it ideal for exposed or semi-protected installations. Alternatively, the IP20 indoor model is suitable for dry, climate-controlled spaces, offering the same capacity, current capability (up to ~ 625 A for the 6-unit; ~ 1250 A for the 10-unit model) and modular design.

  • 19’ Pre-wired Cabinet
  • 6 Battery Units Parallel
  • Maximum Quantity of modules: 6 per 30kWh / Rack
  • Maximum continuous current (busbar): 625A (with M10 nut bolting)
  • IP RATING: IP20
  • Dimensions (W x D x H): 600 x 600 x1270mm
  • Weight: 91kg
  • 4x wheels for easy moving and 4 feet for load bearing
  • No DC circuit breaker
  • Cable entry: Top entry

SKU: ZYC-SIMPOCAB6IP20
