ZYC SIMPO Cabinet x10

$1,999.00 Ex. GST
$1,999.00 Ex. GST
Ex. GST

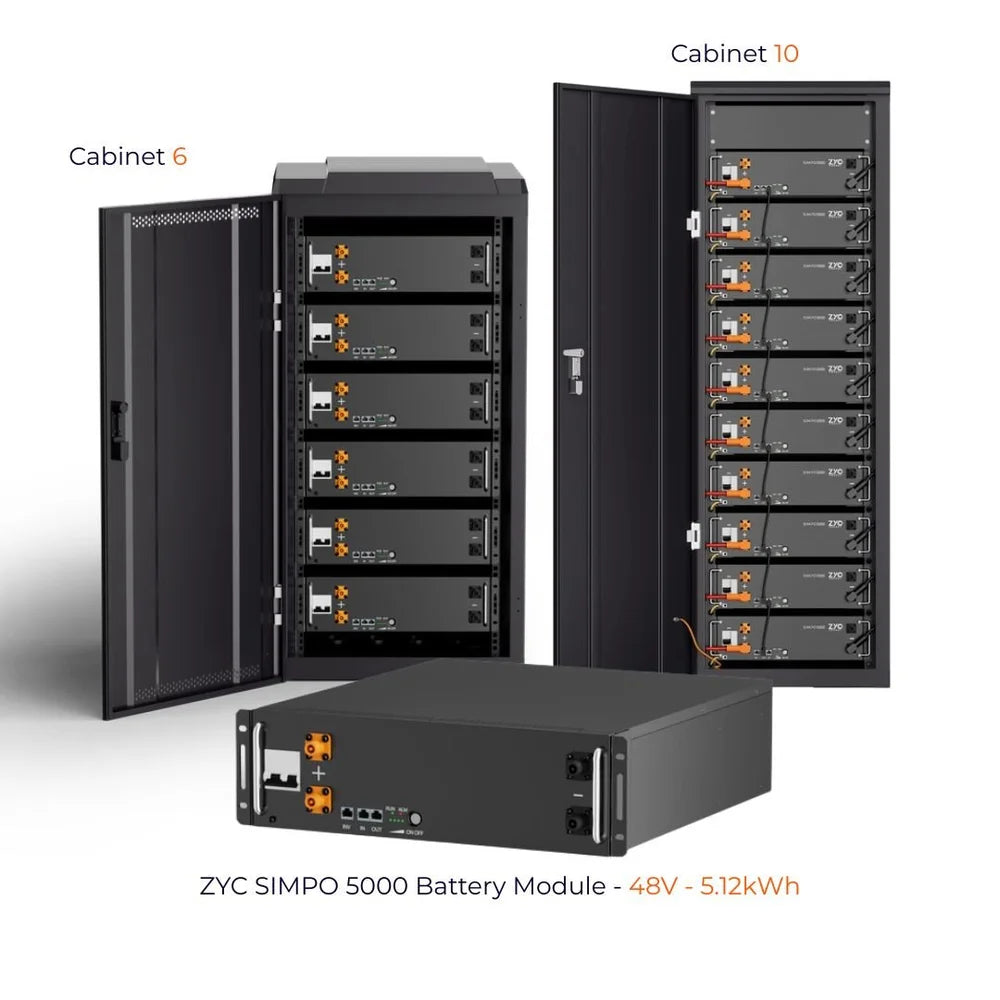

The ZYC SIMPO Cabinet10 is a pre-wired, plug-and-play enclosure engineered to house up to 10 SIMPO5000 battery modules (≈ 50 kWh) with factory-installed busbars and cables to simplify installation.

For indoor use, its IP20 version is ideal for clean, climate-controlled environments, supporting continuous currents up to 1,250 A.  Meanwhile, the IP55 (outdoor) variant provides full dust and water resistance, corrosion protection (C4M), natural cooling, and robust weather sealing - perfect for harsher or exposed locations.

Whether installed inside a plant room or out in the field, the Cabinet10 offers a high-capacity, modular solution that reduces wiring complexity and scales with your energy storage needs.

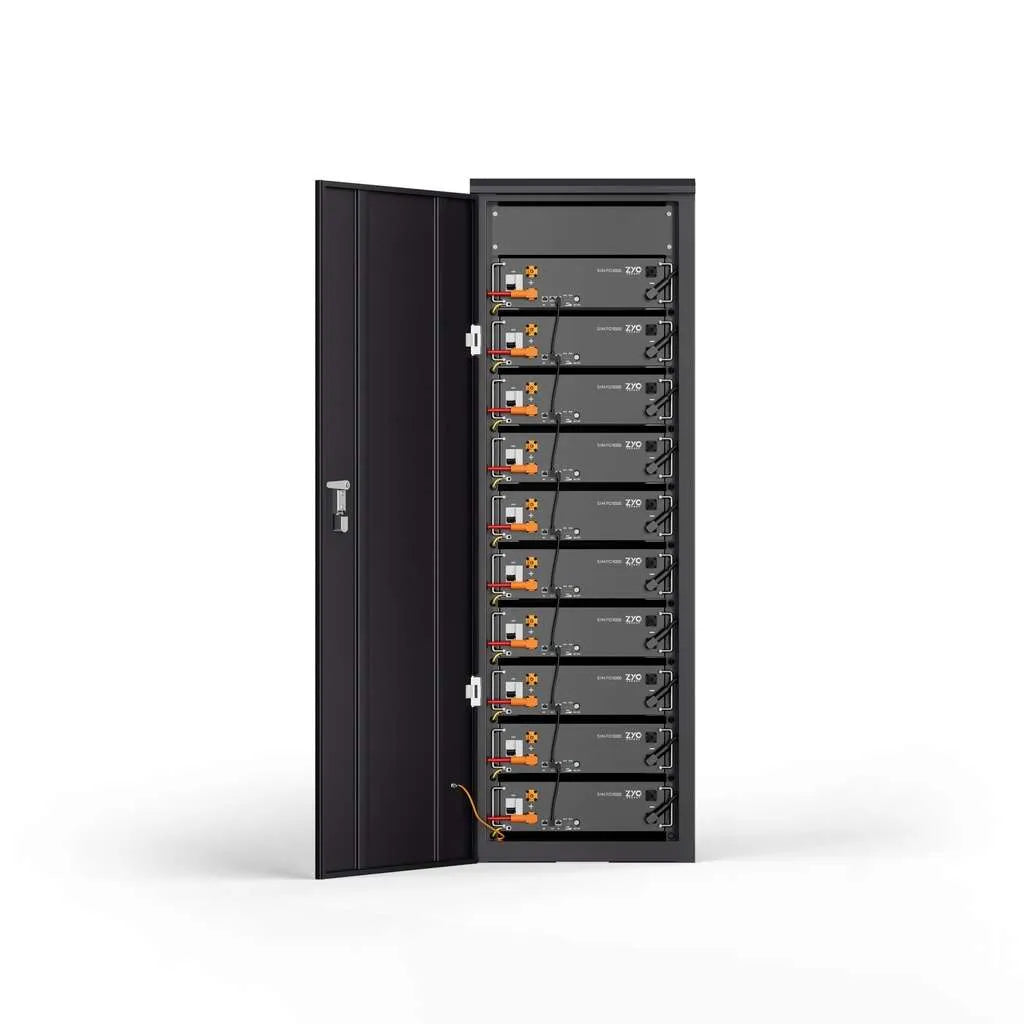

IP20:
Module Capacity: Up to 10 × SIMPO5000 battery modules
Dimensions: 680 mm (W) × 1740 mm (H) × 700 mm (D)
Weight (Gross / Net): 142 kg / 132 kg
Maximum Output Current: 700 A
IP Rating: IP20
Anti-Corrosion Level: Indoor use (not rated for C4M)
Cooling Method: Natural convection
Operating Temperature: −20 °C to +60 °C
Colour: White
Pre-wired: Yes (ready to connect)
Operating Altitude: Up to 3000 m
Brand: ZYC
Family: SIMPO
Quantity per Pallet: 1

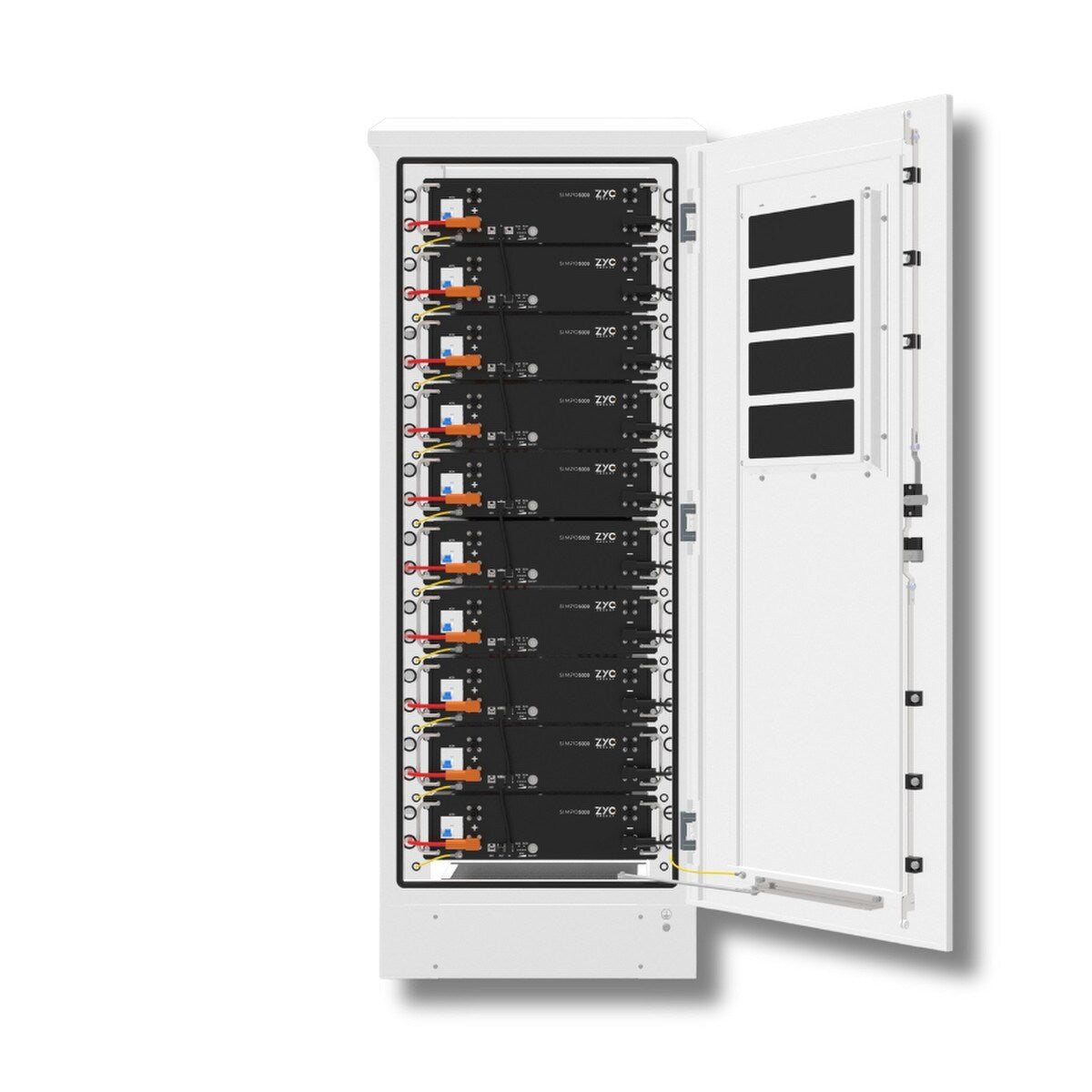

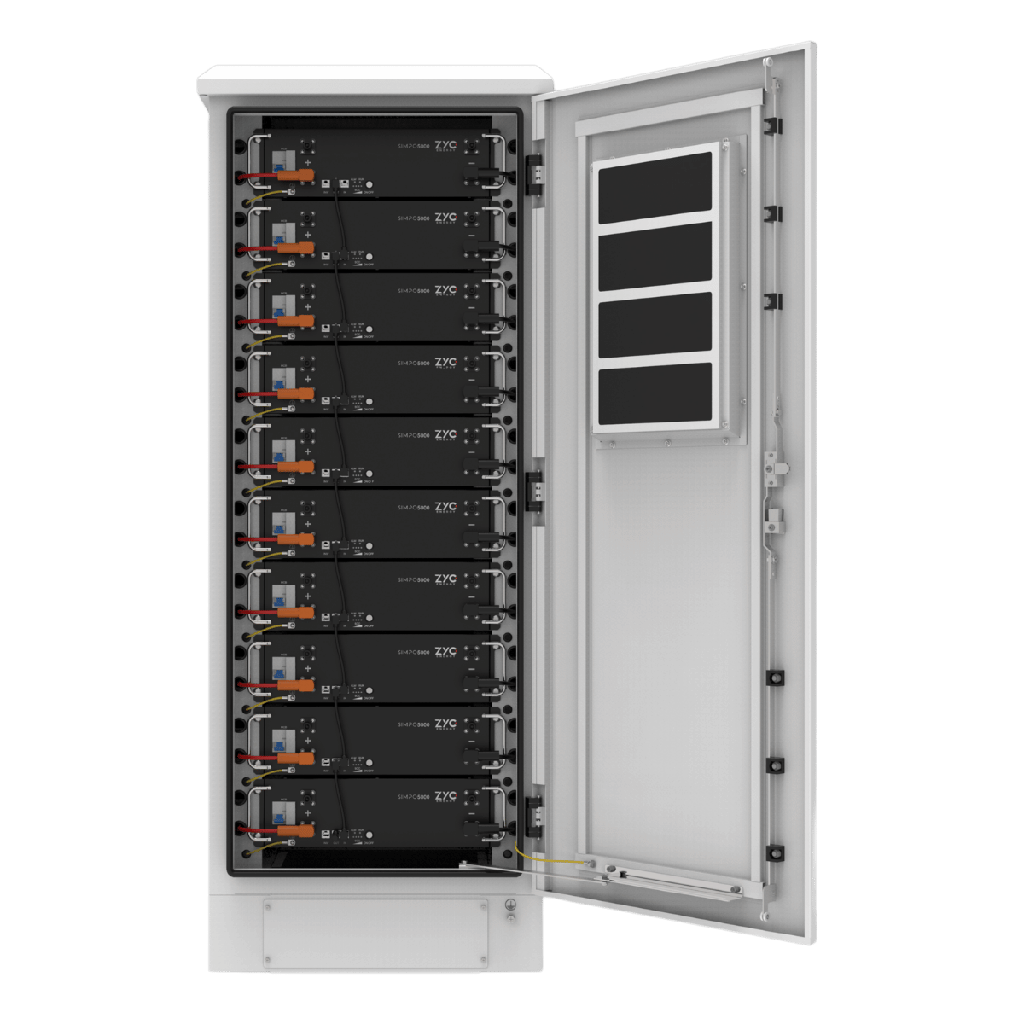

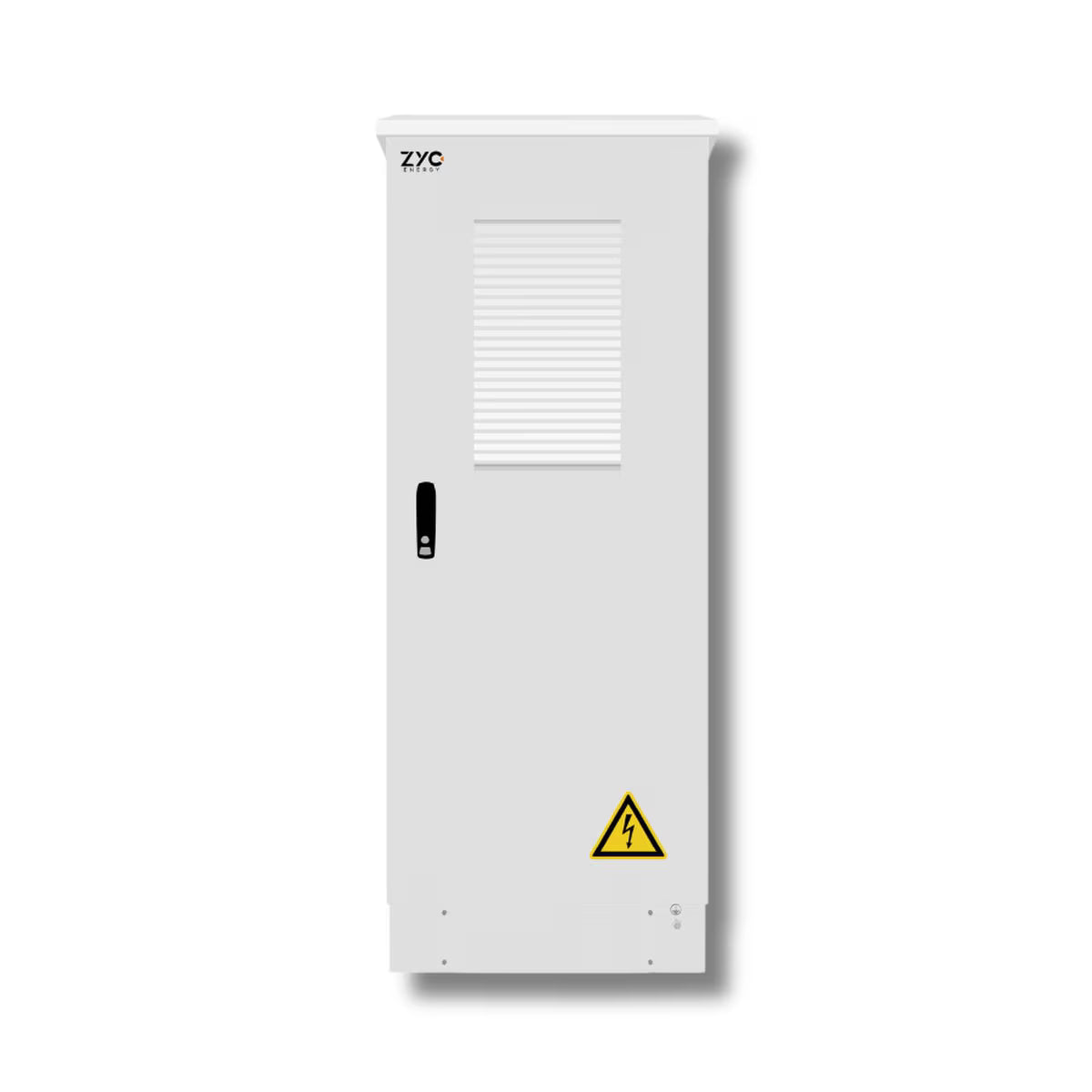

IP55:

  • Module Capacity: Up to 10 × SIMPO 5000 battery modules
  • Dimensions: 680 mm (W) × 1740 mm (H) × 700 mm (D)
  • Weight (Gross / Net): 142 kg / 132 kg
  • Maximum Output Current: 700 A
  • IP Rating: IP55
  • Anti-Corrosion Level: C4M
  • Cooling Method: Natural convection
  • Operating Temperature: -20 °C to 60 °C
  • Color: White
  • Pre-wired: Yes (ready to connect)
  • Operating Altitude: Up to 3000 m

SKU: ZYC-SIMPOCAB10IP20

Capability:
Out Of Stock
