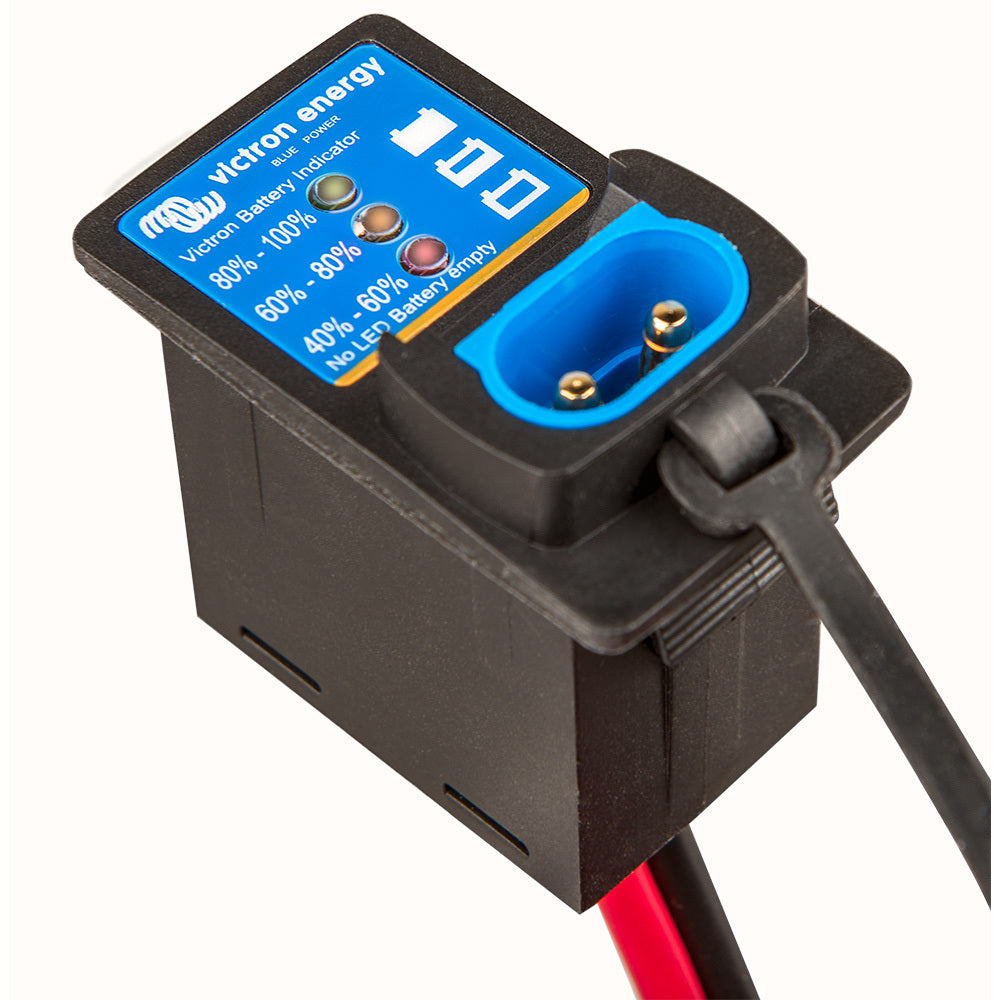

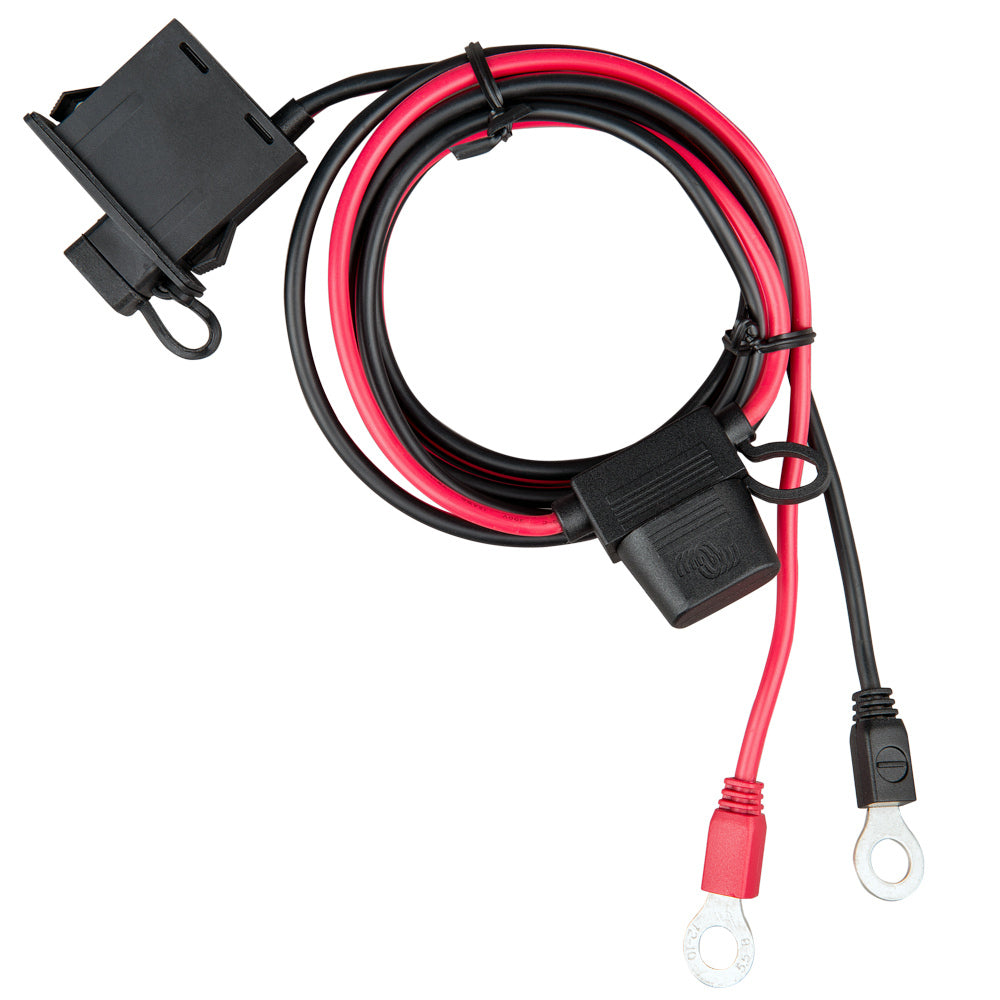

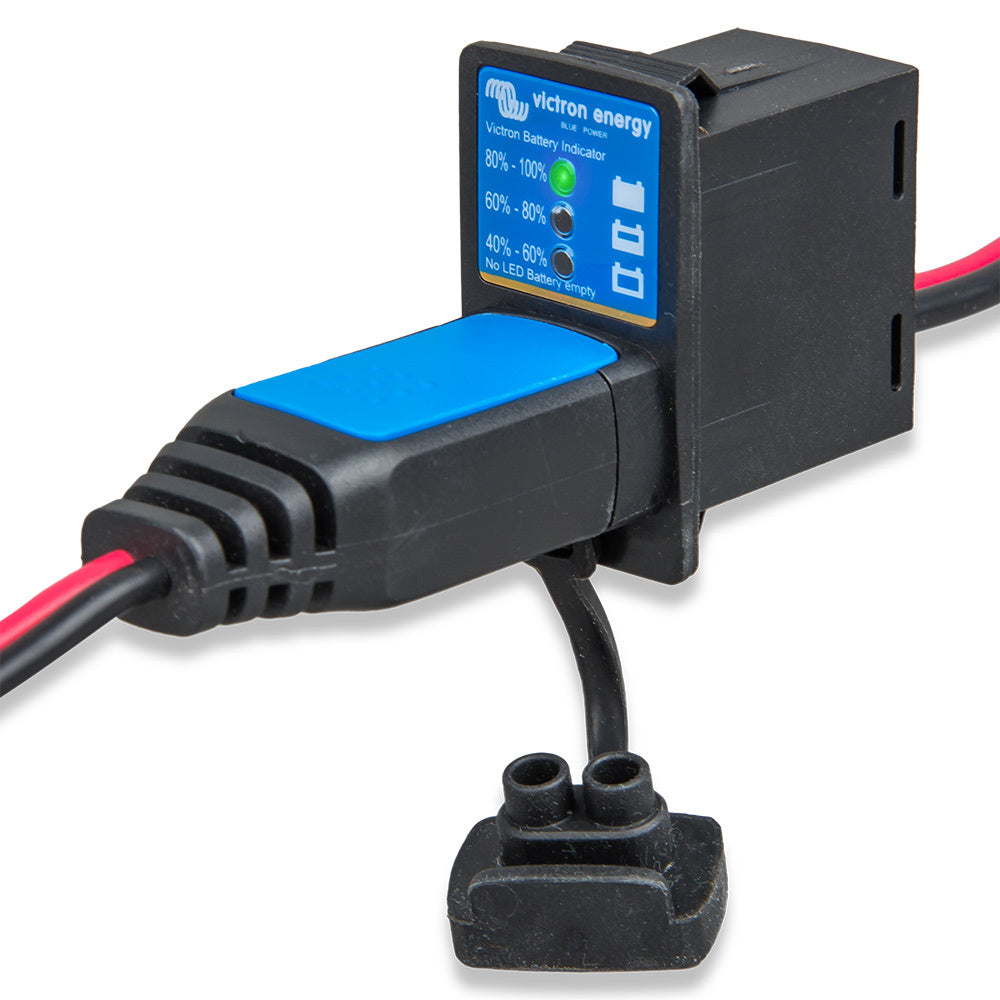

Victron Battery Indicator Panel (M8 eyelet connector / 30A ATO fuse)

The Battery Indicator Panel (with M8 eyelet connector and 30A ATO fuse) provides a quick visual indication of a battery’s state of charge. It’s designed for use with 12-volt Victron IP65 Blue Smart Chargers when charging 12V flooded, GEL or AGM batteries. After charging or using the battery, allow around 30 minutes for an accurate reading.

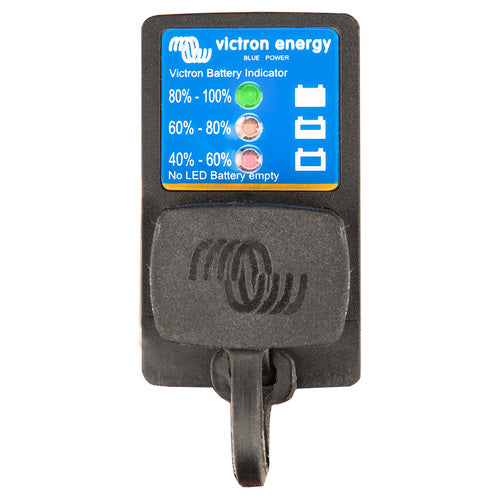

Indicator Lights:
 • Green: 80–100% – no charge needed
 • Orange: 60–80% – battery can be charged
 • Red: 40–60% – battery needs charging
 • No light: <40% – charge immediately to prevent sulphation

Dimensions:
 • Front face: 26 mm (W) × 45 mm (H)
 • Panel cut-out: 22–23 mm (W) × 40–41 mm (H)
 • Depth: 33 mm
